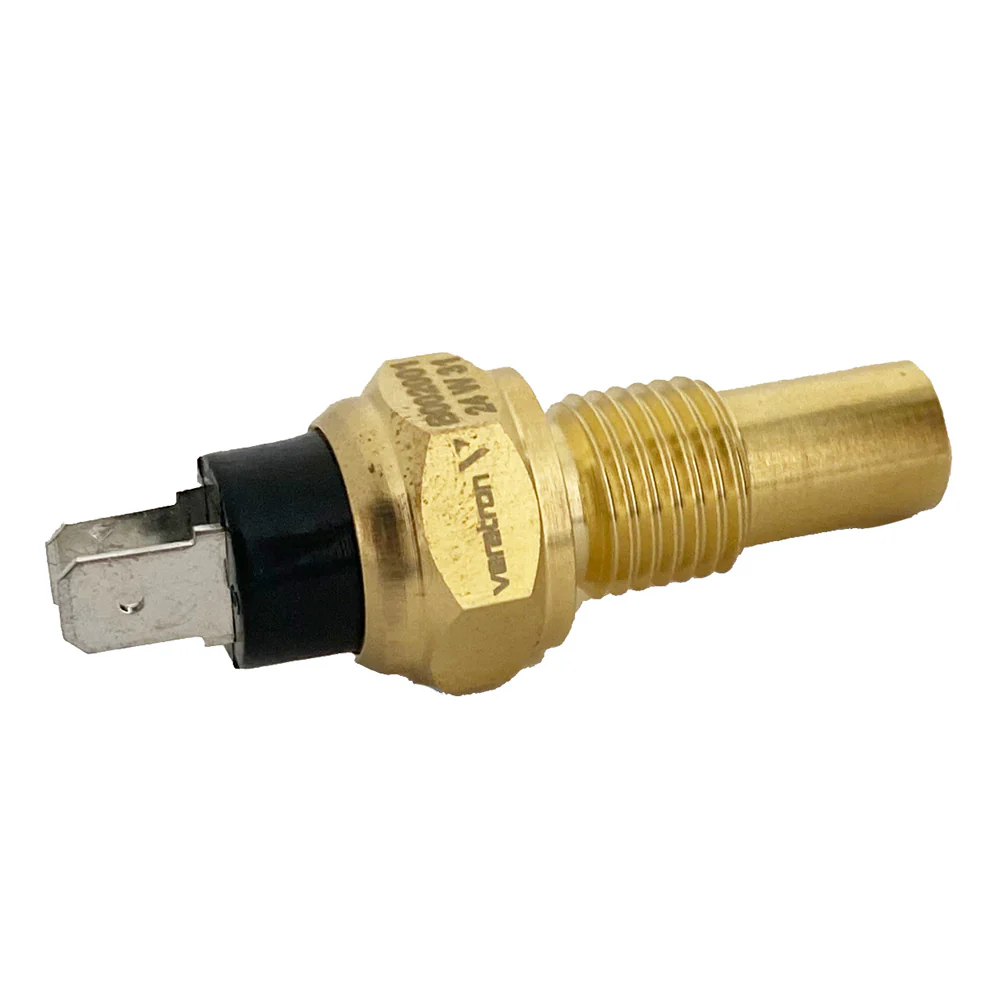

![Veratron Water Temperature Sensor - M14x1.5 Thread - 120C Temp Range [B002001]](/images/navstoreoutlet.shop/images/product/veratron-water-temperature-sensor-m14x1-5-thread-120c-temp-range-b002001-1.jpg)
$22.41
Veratron Water Temperature Sensor - M14x1.5 Thread - 120C Temp Range [B002001]—
$22.41
The Story
Water Temperature Sensor - M14x1.5 Thread - 120°C Temp Range
These resistive temperature sensors are built in a housing of brass. All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors. The sensors can be applied in a wide field of applications.
Features:
- Function - Oil temperature, coolant temperature
- Length - 28.5mm (1-1/8")
- Thread - M14x1.5
- Calibration - 120°C
- Measurement Range - 120°C
- Output Signals - Resistive
- IP67
- Insulated ground pin
Quick Guide (pdf)
Description
Water Temperature Sensor - M14x1.5 Thread - 120°C Temp Range
These resistive temperature sensors are built in a housing of brass. All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors. The sensors can be applied in a wide field of applications.
Features:
- Function - Oil temperature, coolant temperature
- Length - 28.5mm (1-1/8")
- Thread - M14x1.5
- Calibration - 120°C
- Measurement Range - 120°C
- Output Signals - Resistive
- IP67
- Insulated ground pin
Quick Guide (pdf)
