The Story

Micro/Mid Powertap Tee - FM (left)/ 5 Meter 4 Wire Power drop (bottom)/FM (right)

A Powertap Tee is connected to a network backbone just like any Tee but rather than connecting a device their purpose is to provide “bus” power. Maretron Powertap Tee uniquely provides two power inputs permitting doubled power provision for devices.

Yellow cable indicates power and can’t be confused with gray network cable.

NOTE: This powertap tee has female connectors on both sides.  You will need two male terminators on the network backbone.

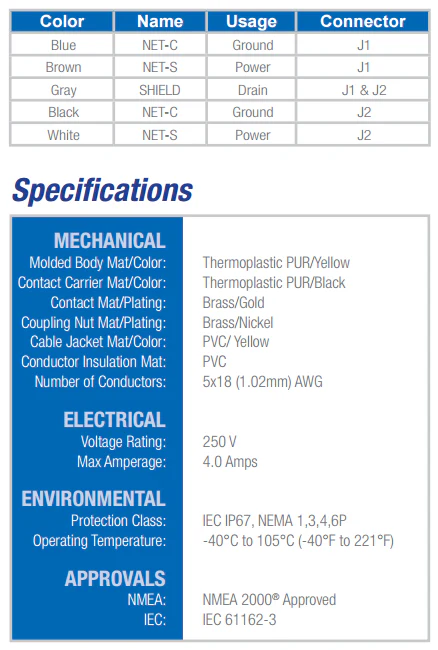

FEATURES
  • Molded Body Mat/Color: Thermoplastic PUR/Yellow
  • Contact Carrier Mat/Color: Thermoplastic PUR/Black
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Cable Jacket Mat/Color: PVC/ Yellow
  • Conductor Insulation Mat: PVC
  • Number of Conductors: 5x18 (1.02mm) AWG
ELECTRICAL:
  • Voltage Rating: 250 V
  • Max Amperage: 4.0 Amps
ENVIRONMENTAL:
  • Protection Class: IEC IP67, NEMA 1,3,4,6P
  • Operating Temperature: -40°C to 105°C (-40°F to 221°F)
APPROVALS:
  • NMEA: NMEA 2000® Approved
  • IEC: IEC 61162-3



Maretron NMEA 2000 Micro/Mid Powertap Tee - FM (left)/ 5 Meter 4 Wire Power drop (bottom)/FM (right) CF-SPWR05-CF - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Maretron NMEA 2000 Micro/Mid Powertap Tee - FM (left)/ 5 Meter 4 Wire Power drop (bottom)/FM (right) CF-SPWR05-CF - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Micro/Mid Powertap Tee - FM (left)/ 5 Meter 4 Wire Power drop (bottom)/FM (right)

A Powertap Tee is connected to a network backbone just like any Tee but rather than connecting a device their purpose is to provide “bus” power. Maretron Powertap Tee uniquely provides two power inputs permitting doubled power provision for devices.

Yellow cable indicates power and can’t be confused with gray network cable.

NOTE: This powertap tee has female connectors on both sides.  You will need two male terminators on the network backbone.

FEATURES
  • Molded Body Mat/Color: Thermoplastic PUR/Yellow
  • Contact Carrier Mat/Color: Thermoplastic PUR/Black
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Cable Jacket Mat/Color: PVC/ Yellow
  • Conductor Insulation Mat: PVC
  • Number of Conductors: 5x18 (1.02mm) AWG
ELECTRICAL:
  • Voltage Rating: 250 V
  • Max Amperage: 4.0 Amps
ENVIRONMENTAL:
  • Protection Class: IEC IP67, NEMA 1,3,4,6P
  • Operating Temperature: -40°C to 105°C (-40°F to 221°F)
APPROVALS:
  • NMEA: NMEA 2000® Approved
  • IEC: IEC 61162-3
