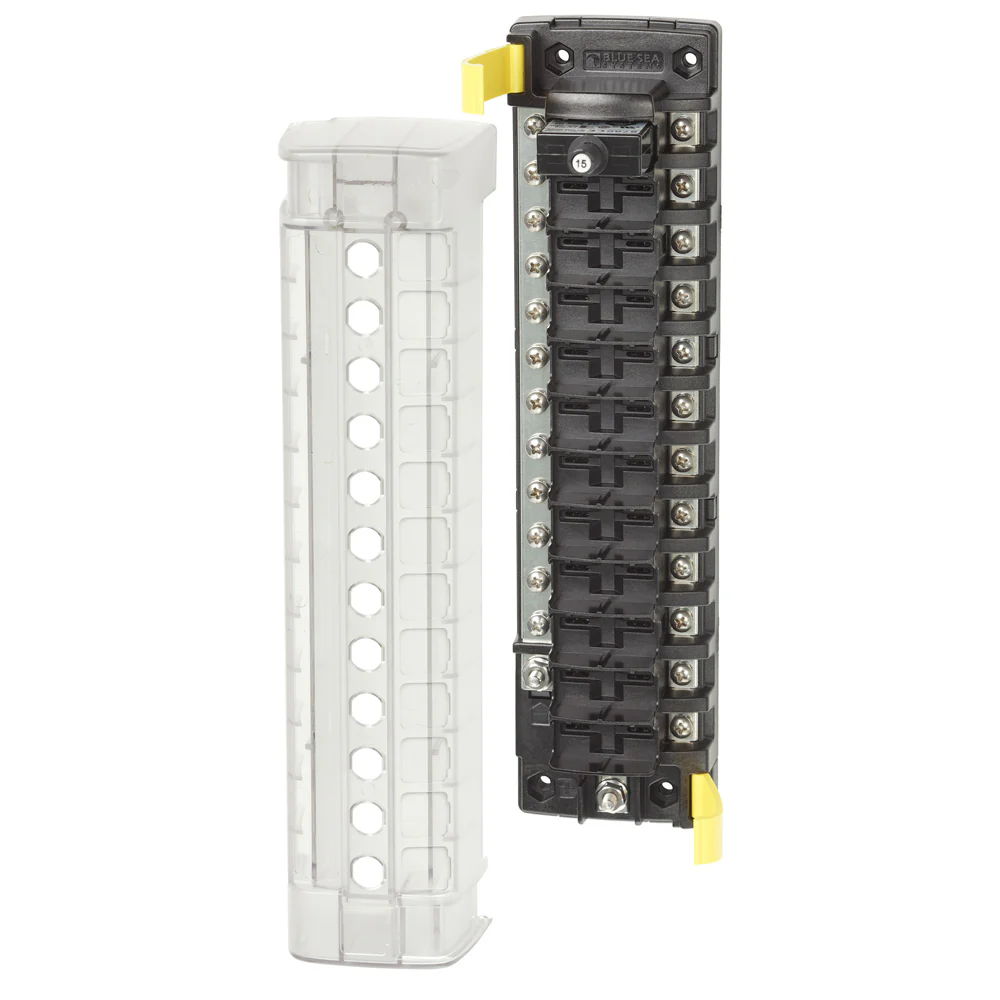

![Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus [5054]](/images/navstoreoutlet.shop/images/product/blue-sea-5054-st-clb-circuit-breaker-block-12-position-w-negative-bus-5054-1.jpg)
Original: $111.95
-70%$111.95
$33.59The Story
ST CLB Circuit Breaker Block - 12 Position w/Negative Bus
Features
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
Specifications:
Circuits: 12
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 10.13"(257.3 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 1.50lb (0.68 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Amperage: 100/32a
- Box Dimensions: 3"H x 5"W x 15"L WT: 1.5 lbs
- UPC: 632085050542
Brochure (pdf)

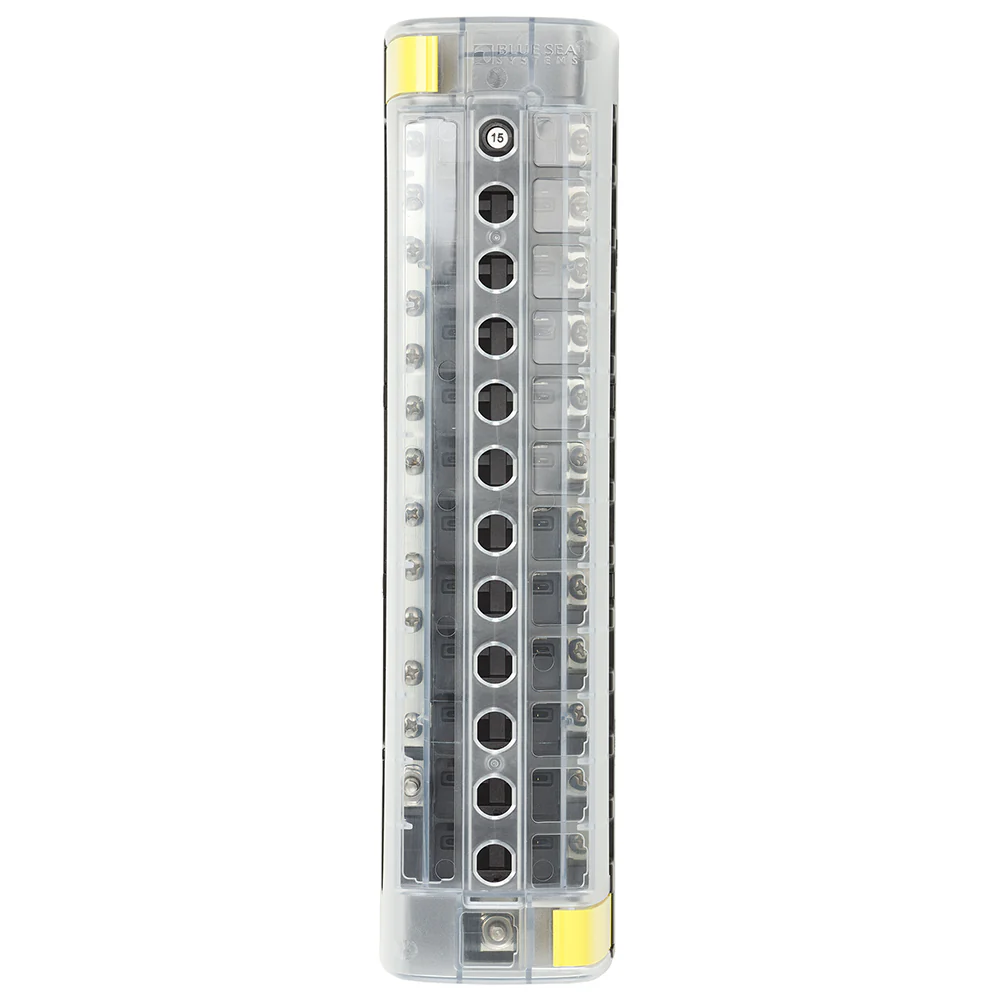

![Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus [5054] - Image 2](/images/navstoreoutlet.shop/images/product/blue-sea-5054-st-clb-circuit-breaker-block-12-position-w-negative-bus-5054-2.jpg)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

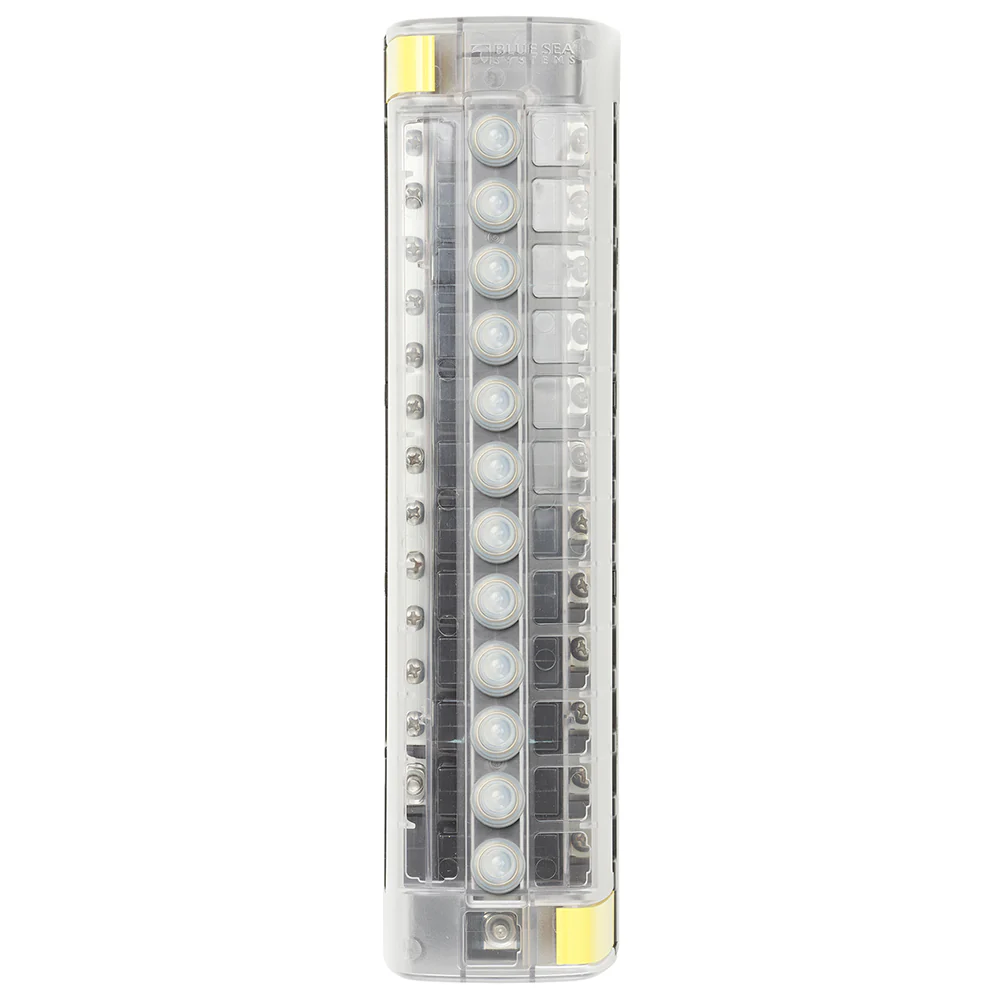

![Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus [5054] - Image 3](/images/navstoreoutlet.shop/images/product/blue-sea-5054-st-clb-circuit-breaker-block-12-position-w-negative-bus-5054-3.jpg)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
ST CLB Circuit Breaker Block - 12 Position w/Negative Bus
Features
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
Specifications:
Circuits: 12
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 10.13"(257.3 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 1.50lb (0.68 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Amperage: 100/32a
- Box Dimensions: 3"H x 5"W x 15"L WT: 1.5 lbs
- UPC: 632085050542
Brochure (pdf)
